Manufacturer: ASUS CPU Socket Type: LGA775 Socket
CPU Type: Core 2 Quad Chipset Type: NVIDIA Quadro FX 470
condition:tested
Supported CPU
CPU Socket Type LGA 775
CPU Type Intel Core2 processors / Pentium D / Pentium 4 /Celeron CPU / 45nm, Core 2 Extreme/Core 2 Quad/Core 2 Duo
FSB 1333/1066MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
North Bridge NVIDIA Integrated Quadro FX470
Memory
Number of DDR2 Slots 4 x 240Pin
DDR2 Standard DDR2 800
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x 16 1
PCI Express x1 1 x PCIe x 1 (x4 Slot) for optional SAS card
1 x PCIe x 1 (x1 Slot)
PCI Slots 1
Storage Devices
SATA 6 x SATA 3.0Gb/s
SATA RAID 0/1/5
Onboard Video
Onboard Video Chipset Integrated Quadro FX470
Onboard Audio
Audio Chipset ADI AD1988B
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111C
LAN Speed 10/100/1000Mbps
Second LAN Chipset Realtek 8111C
Second LAN Speed 10/100/1000Mbps
Max LAN Speed Dual 10/100/1000Mbps
Rear Panel Ports
PS/2 1
Video Ports 2 x DVI-I port ( Upper: DVI-I(single link, 1920 x 1200), Lower: DVI(dual link, 2560 x 1600) )
USB 1.1/2.0 6 x USB 2.0
Physical Spec
Form Factor uATX
Dimensions 9.6" x 9.6"
Package Contents

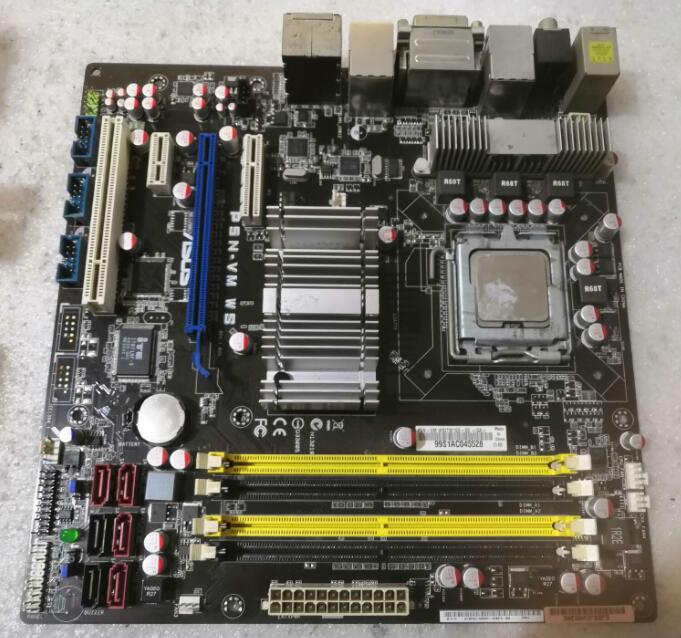

1 x ASUS P5N-VM WS/TW100-E5 LGA775 uATX Workstation Motherboard
1 x Drivers CD
1 x Manual
1 x I/O Shield
2 x SATA Cable
1 x ATA IDE Cable
1 x FDD Cable
