Part / Feature
Specification / Support
Motherboard description

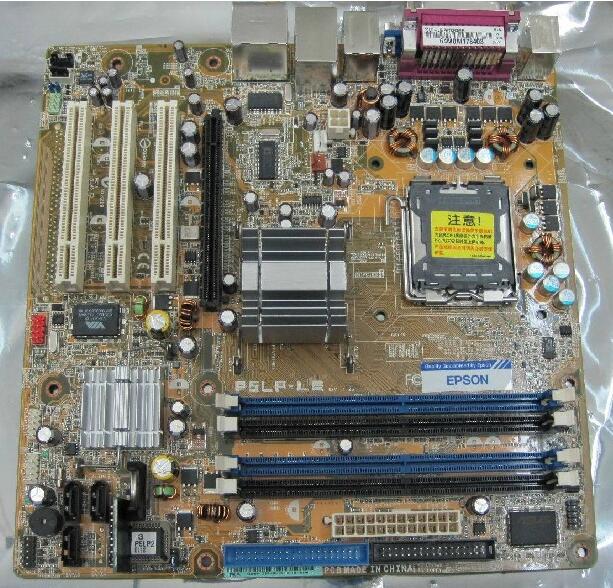

Motherboard manufacturer's name: ASUS P5LP-LE
HP/Compaq name: Lithium2-UL8E
CPU/Processor
Socket: 775
Supports the following processors:
Pentium D 9x0 series
Pentium D 8xx series
Pentium 4 5xx series
Pentium 4 6xx series
Front-side bus (FSB)
533 MHz, 800 MHz, 1066 MHz (processor dependent)
Chipset
Intel 945P
BIOS features
Award brand system BIOS
Keyboard combination to used to enter BIOS: F1
Form factor
Micro-ATX: 9.6 in X 9.6 in
Memory
Four 240-pin DDR2 DIMM sockets
Supports PC2 3200 (400 MHz), PC 4200 (533 MHz) and PC2 5300 (667 MHz) DDR2 DIMMs
Maximum HP/Compaq approved memory is 4 GB*
NOTE:
*Actual available memory may be less
Expansion slots
Three PCI
One PCI Express x16 graphics
Video graphics
Requires a PCI Express x16 graphics card
Serial ATA
4 SATA connectors
Each connector supports 1 serial ATA-150 disk drive
Onboard audio
Integrated Intel High Definition (TM) audio (Azalia)
Realtek ALC 882 CODEC
Supports up to 8 audio channels
Dolby Pro Logic IIx compatible
Onboard LAN
Intel 82562GT
10/100 Mbps Fast Ethernet
