Model
Brand ASUS

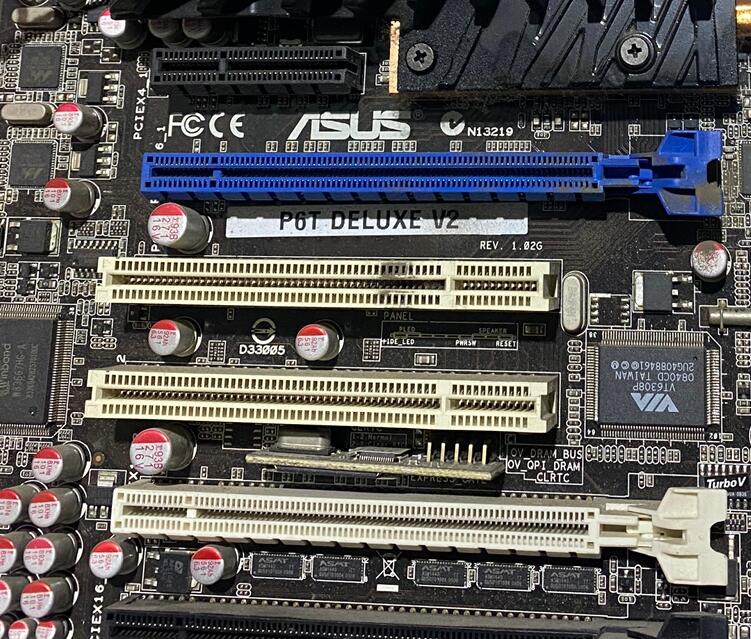

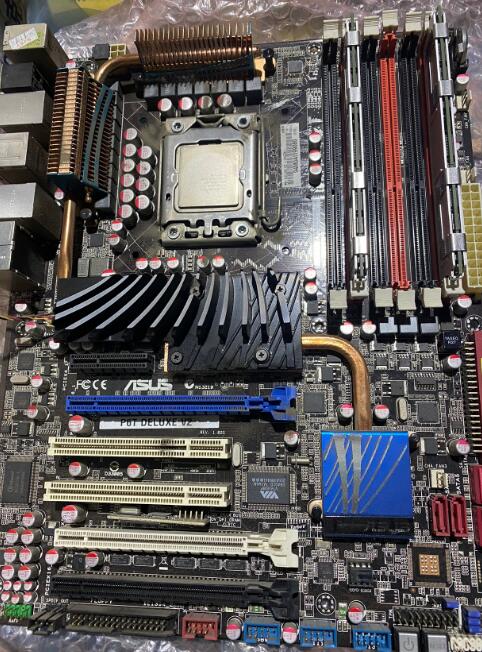

Model P6T Deluxe V2
Supported CPU
CPU Socket Type LGA 1366
CPU Type Core i7 (LGA1366)
FSB QPI 6.4GT/S
Chipsets
North Bridge Intel X58
South Bridge Intel ICH10R
Memory
Number of Memory Slots 6×240pin
Memory Standard DDR3 2000(O.C)/1866(O.C)/1800(O.C)/1600(O.C)/1333
Maximum Memory Supported 24GB
Channel Supported Triple Channel
Expansion Slots
PCI Express 2.0 x16 3 x PCIe 2.0 x16 (at x16/x16/x1 or x16/x8/x8 mode)
PCI Express x1 1
PCI Slots 2
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 6
SATA RAID 0/1/5/10
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset ADI AD2000B
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Marvell 88E8056
Second LAN Chipset Marvell 88E8056
Max LAN Speed Dual 10/100/1000Mbps
Rear Panel Ports
PS/2 1
USB 1.1/2.0 8 x USB 2.0
IEEE 1394 1 x IEEE 1394a
eSATA 1 x eSATA 3Gb/s
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Onboard USB
Onboard USB 3 x USB connectors support additional 6 USB ports
Onboard 1394
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Dimensions 12.0" x 9.6"
Power Pin 24 Pin
