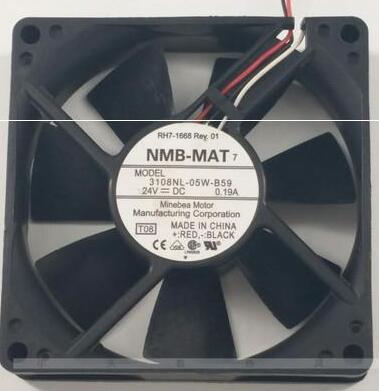

NMB 3108NL-05W-B59-P00 24V 0.19A 3.6W 3wires Cooling Fan
|
Manufacturer |
NMB |
|
Part number |
3108NL-05W-B59-P00 |
|
other name |
08020MA-24N-EL-00,3108NL05WB59P00,P13409,31O8NL-O5W-B59-POO, |
|
AC/DC |
DC Fans |
|
Fan Type |
Axial |
|
Size |
80 mm x 80 mm x 20 mm |
|
Voltage |
24V |
|
Current |
0.15A |
|
PoWer |
3.6W |
|
Termination |
3 wires |
|
Speed (RPM) |
3750 |
|
Air Flow |
44.0 CFM (1.25 m³/min) |
|
Features |
Locked Rotor Sensor |
|
Bearing |
Ball |
|
Shape |
Square |
|
Series |
3108NL |
|
Static Pressure |
0.201 in H2O (50.1 Pa) |
|
Noise |
42 dBA |
|
Blade_material |
Plastic |
|
Frame_material |
Plastic |
|
Notes, Comments & Additional Information |
Abctay recommends ordering by part number whenever possible. |
