Part Type:: Power Supply Unit
Part Number:: BN96-01850F
MFR Part Number 1:: Samsung BN96-01850F
Board Number(s):: LCD23V1AX
Substitute Parts:: BN96-01850E , BN96-01850D , BN96-01850C , BN96-01850B , BN96-01850A
Known Models:: SAMSUNG LNR238WAX/XAA , SAMSUNG LNR238WXX/XAA , SAMSUNG LNR238WX/XAA , SAMSUNG LNR2337WX/XAA , SAMSUNG LNR2355WX/XAA , SAMSUNG LNR237W1X/XAA , SAMSUNG LNR237WX/XAA , SAMSUNG LNR238WHCX/XAA , SAMSUNG LNR238WHX/XAA , SAMSUNG LNS2338WX/XAA , SAMSUNG LNS2341WX/XAA , SAMSUNG LNS2351WX/XAA , SAMSUNG LNS2352WX/XAA , SAMSUNG LNR238WXCX/XAA
NO Power Troubleshooting HELP
We are here to help! If you're unsure of how to diagnose and troubleshoot the TV message or call us for more assistance!
*NOTE* LG & Vizio TVs must be plugged in for 5 minutes before it will turn on*
*For main board replacements check firmware upgrades online - We can not pre-install them*
1. Inspect ALL Ribbons and connectors. Any tears or bad connections between boards must be replaced FIRST
2. If you have any of these boards, it should be the first board to be replaced
A) T-Con Board - Video Problems (No Video with standby light on, audio but no video, grainy, distorted, or color problems in screen)
B) X or Y Buffer Board (Plasma TVs only) - Standby light is on but no power
C) Backlight Inverter / LED Driver - No Video with standby light on
3. Main Video Board
- Standby light is on but no power
- Either video or audio does not work (if no T-Con in TV. If audio but no video it is T-Con)
4. Power Board - No power AND standby light does NOT turn on. If standby light is on try other boards above
5. Panel - No power, distorted picture, lines, slow motion, half screen, faded in / out. Panel problems are usually not worth replacing the panel.

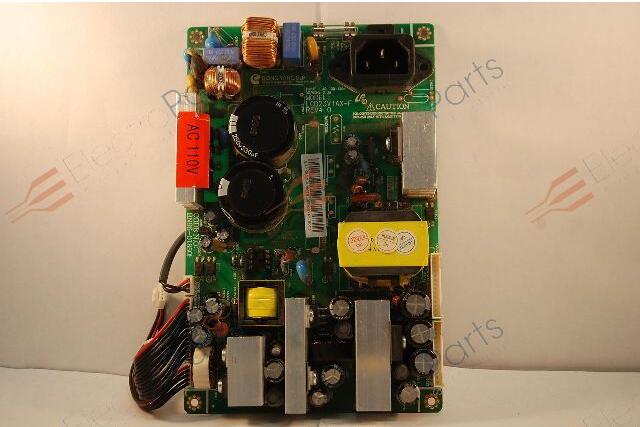

Please be sure that the BOARD Part Number and picture on your motherboard is EXACTLY as shown above. Do not match by TV Model. There are possibly several different boards for each model TV. This board has been pulled from a working cracked screen TV. All items are tested and guaranteed to work. This photo is STOCK meaning it may vary slightly from the one you received in color or removable cables.
