Description:
Product Name: Audio Video Converter
Color: Black
Manufacturing method: Semi mechanical
Material: Metal
Specification:

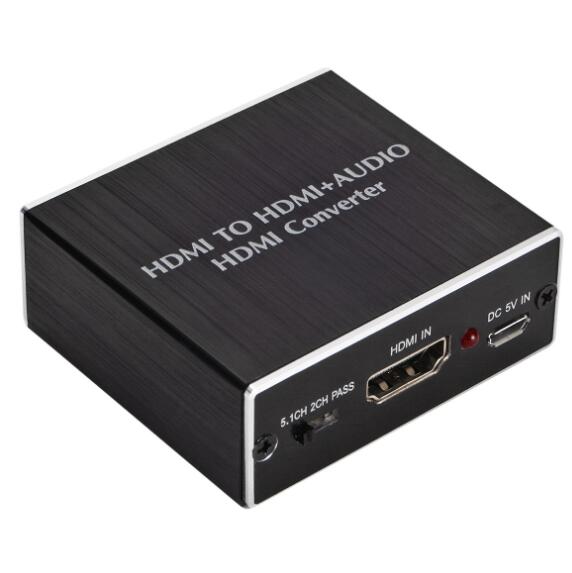

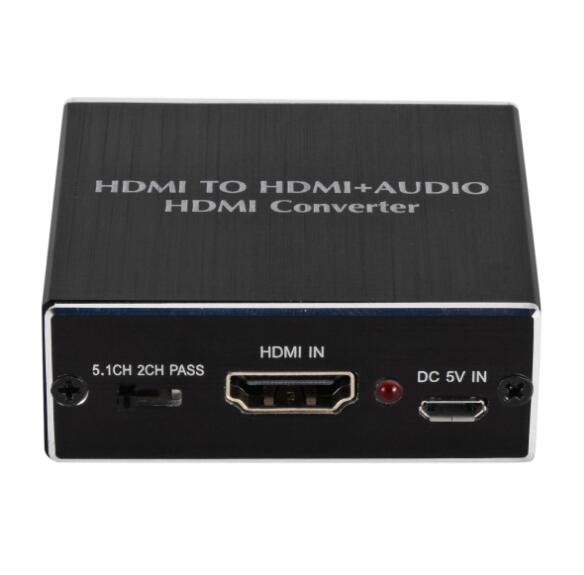

Input Port: 1 x HDMI IN, 1 x Micro USB Power Port, 3 x EDID Audio (Pass / 2CH / 5.1CH)

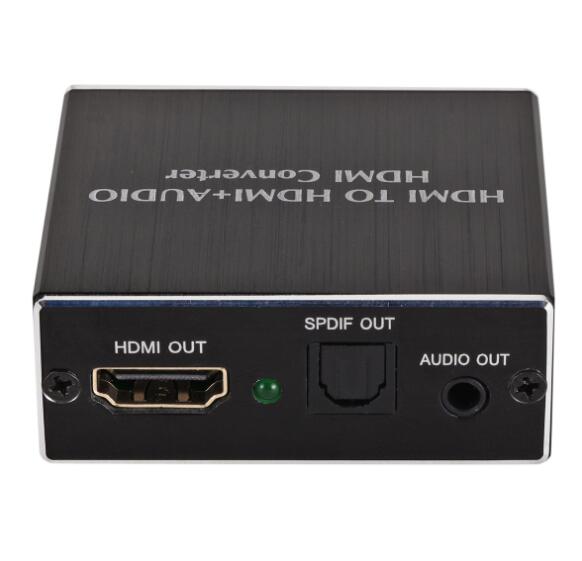

Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI resolution: 4K x 2K, 24/50 / 60fs / 1080P / 1080i / 720p / 576p / 576i / 480p / 480i
Support video color format: 24bit / deep color 30bit, 36bit
Max bandwidth: 225MHz
Max baud rate: 6.75Gbps
Max working current: 190mA
Three switing audio EDID settings:
Pass: HDMI pass mode. The audio and video can be convertered from the HDMI output. SPDIF and L / R will not output any sound.
2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HDMI input and the HDMI / SPDIF and L / R output stereo audio.
5.1CH Mode: Extract 5.1 Dolby Digital / DTS and output via HDMI / SPDIF.
Kindly Note:
Not Support Dolby Digital Plus audio, it is support DTS Audio and Dolby digital audio.
USB POWER-USB POWER-For some devices with low power HDMI ports (Such as PS4, PS4 Slim and other Sony Device), Please USE PHONE ADAPTER to charger it (Just come with USB Cable)
NOT SUPPORT copyright protected content; Astro game headsetsApplicable scene: Windows, Android and MacOS

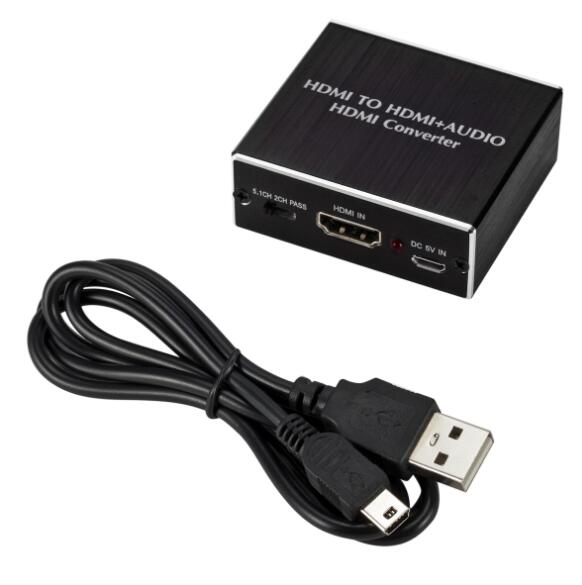

Package Contents:
1 X HDMI Audio Extractor
1 X 3.5mm to RCA Stereo Audio Cable
1 x Micro USB cable
1 X User Manual
Note: The colors deviation might differ due to different monitor settings.
Manual measuring, please allow 1 ~ 3mm error,thank you.
Product description
This 4K x 2K HDMI audio extractor not only to meet the ideal image of the HDTV but also to meet the need for an extract audio from HDMI source. It can extract the digital audio signal embedded in HDMI source and convert it through 3.5mm analog audio output and SPDIF output at the same time. The SPDIF output both can support 2CH audio or 5.1CH audio including Dolby Digitla 5.1CH and DTS 5.1CH.
