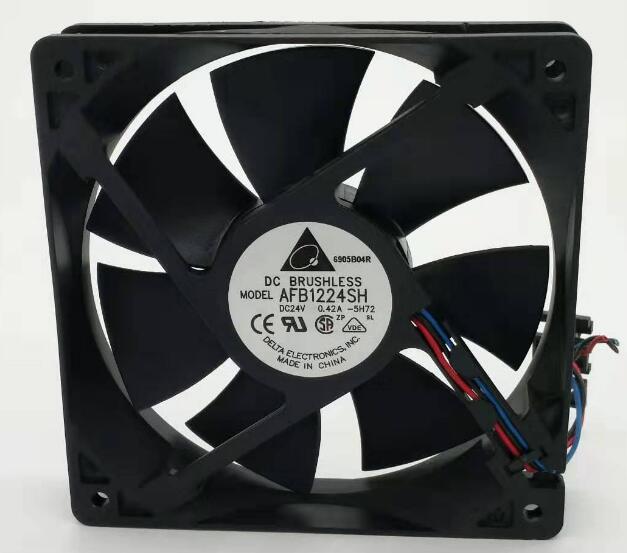

DELTA AFB1224SH 24V 0.42A 3wires Cooling Fan
|
Manufacturer |
DELTA |
|
Part number |
AFB1224SH |
|
other name |
603-1077, |
|
AC/DC |
DC Fans |
|
Fan Type |
Axial |
|
Size |
120 mm x 120 mm x 25 mm |
|
Voltage |
24V |
|
Current |
0.42A |
|
Termination |
3 wires |
|
Speed (RPM) |
3400 |
|
Air Flow |
113.1 CFM (3.20 m³/min) |
|
Bearing |
Ball |
|
Shape |
Square |
|
Series |
AFB |
|
Static Pressure |
0.430 in H2O (107.1 Pa) |
|
Noise |
46.5 dBA |
|
Blade_material |
Plastic |
|
Frame_material |
Plastic |
|
Notes, Comments & Additional Information |
Abctay recommends ordering by part number whenever possible |
