Description:

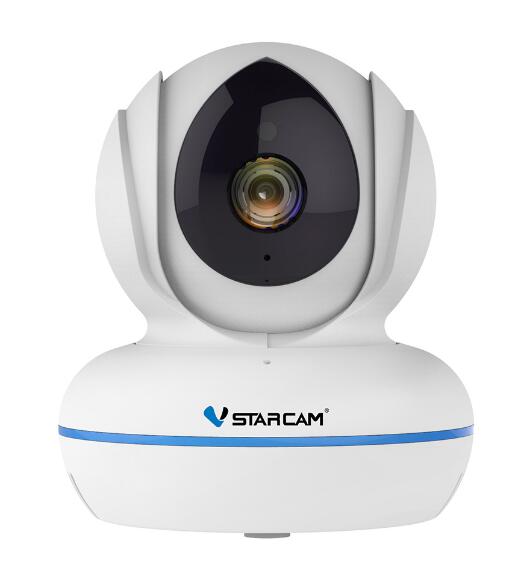

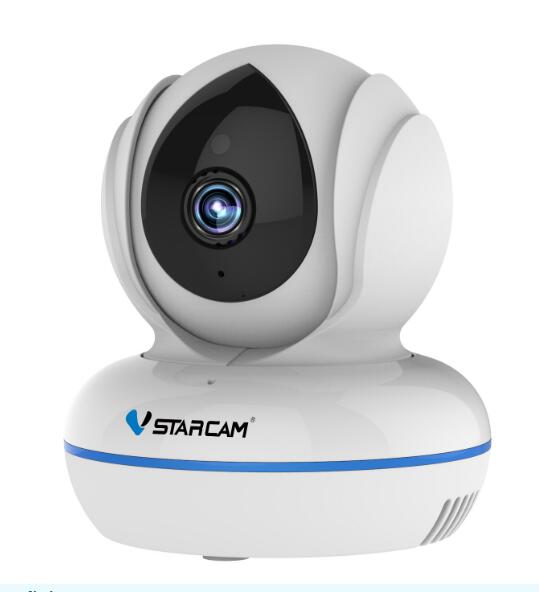

Item type:VStarcam C22Q IP Camera
Operation system-Embedded Linux OS
Online visitor-Support 4 visitors at the same time
1/3inch 4M Progressive Scan CMOS
Minimum Illumination
Lens-4.0mm@F2.0
Night vision
Dual Filter,IR-Cut,6pcs 850nm SMD IR LEDIR irradiation distance:5～10m
Video
Encode format
H264,Baseline/Main Profile/High Profile;H.265 Main Profile
Three Stream
Sub Stream:360p(640X360)@15fps
Third Stream:180p(320X180)@10fps
Bit Rate-128～4096kbps
Maximum frame rate-15fps
Image adjustment-Contrast,Brightness, Saturation, Hue
Audio
Input
Built-in -38 dB microphone
Output
Sampling frequency / width
8KHz/16bit
Compression standard
ADPCM/32kbps

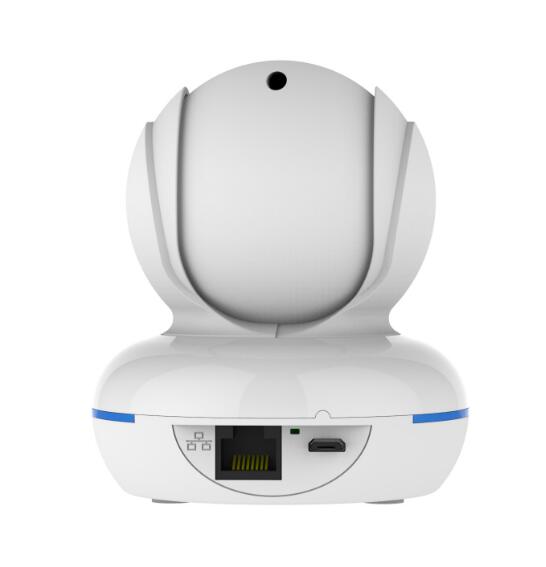

Ethernet-10Base-T / 100Base-TX, RJ45 connector
Protocols-TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc
Wireless LAN
IEEE802.11b/g/n/ac
Wireless LAN Frequency
2.4~2.4835GHz; 5.725~5.850GHz
Wireless LAN security
64/128-bit WEP/WPA-PSK /WPA2-PSK data encryption
Socket-TF Push-push socket,Maximum support 128GB
Alarm-Alarm Trigger
Motion detection
Rated power:2.35 W(IR LED on), Maximum Power: 5.40W(Pan&Tilt on)
Temperature:-10～50℃,humidity:＜90%
Package Include:
1X VStarcam C22Q IP Camera
1X Power Adapter (EU / US/AU/UK Plug for Optional~)
1X Set of Installation Accessories
1X English User Manual
Note:
The colors deviation might differ due to different monitor settings.
Android/iOS Mobile phone monitoring.
Two way audio.Triple data rate output.
5-10m Infrared night vision.
Motion detection.Video recording.
4.0 megapixel HD. H.265 format.
WiFi connection. Support 5G WiFi.
