Description:
Item type:Adapter

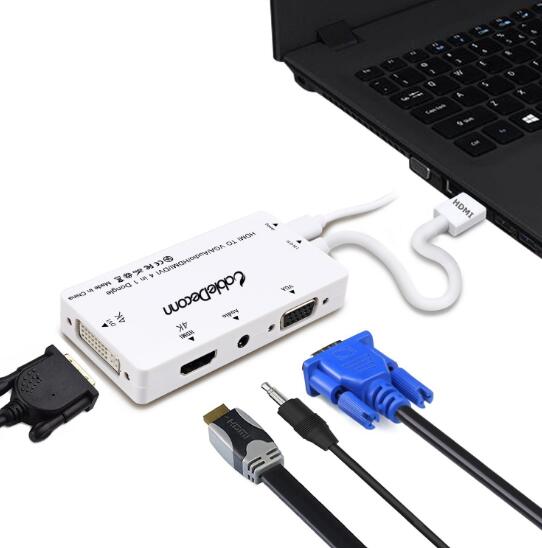

How to use This HDMI to HDMI VGA DVI 3.5MM Audio Micro USB Adapter:
1:Please connect HDMI Input Port to your Input Device,such as Set Top Box,Computer/Laptops etc.
2:Please connect an HDMI or VGA or DVI cable to your Output Device,such as Projectors,Monitors,Tvs.Please be well known that you can only pick up one of the three ports to connect to your external display devices.
3:If your conecting HDMI Output Devices is monitors or projectors which do not support audio output or built-in speakers ,please connect 3.5mm audio cable from our adapter to your exteral speakers to get audio out;If you connect VGA or DVI output device,please also c onnect 3.5mm audio cable to your external speakers to get audio out.
4:In case your input devices are with Insufficient Power,please conect micro usb cable from our adapter to your usb devices for power supply.
Compatible Devices:
The HDMI to HDMI VGA DVI 3.5mm Audio Micro USB Adapter is compatible with SetTop Box,Computers/Laptops and most of HDMI Input Devices,and also compatible with Monitors/Projectors/Tvs as output devices which are equipped with HDMI VGA or DVI Port.
Important Notes When using:
1:The Adapter can only connect one monitors at a time,you can not connect more than one monitors to output signal.
2:The HDMI Port and DVI port Support to Output 4K*2K Signal,But if you would like to Output 4k*2k Video,please make sure you have 4k cable,4k source,4k monitors.
3:If you buy adapter from us,we do not supply HDMI ,VGA or DVI cables.
4:All VGA and DVI cables connected to your output device will not transmit audio,please use 3.5mm audio port in our adapters to get audio works.
Package Include:
1 x product, 1 x Manual, 1 x box packaging
Note:
The colors deviation might differ due to different monitor settings.
-
What Interface It contains:
-
1xHDMI V1.4 Versions Port,supports resolution Max to 4K 3840x2160@30Hz.
-
1xDVI 24+1 Port Female, supports resolution Max to 4K 3840x12160@30Hz.
-
1xVGA 15 Pin Port, supports Resolution Max to 1920x1080@60Hz.
-
1x 3.5mm Audio Port, connect external speakers or audio&sound devices.
-
1xMicro USB DC-5V,Max 1.5W Port,It supports to connect USB for Power Delivery.
