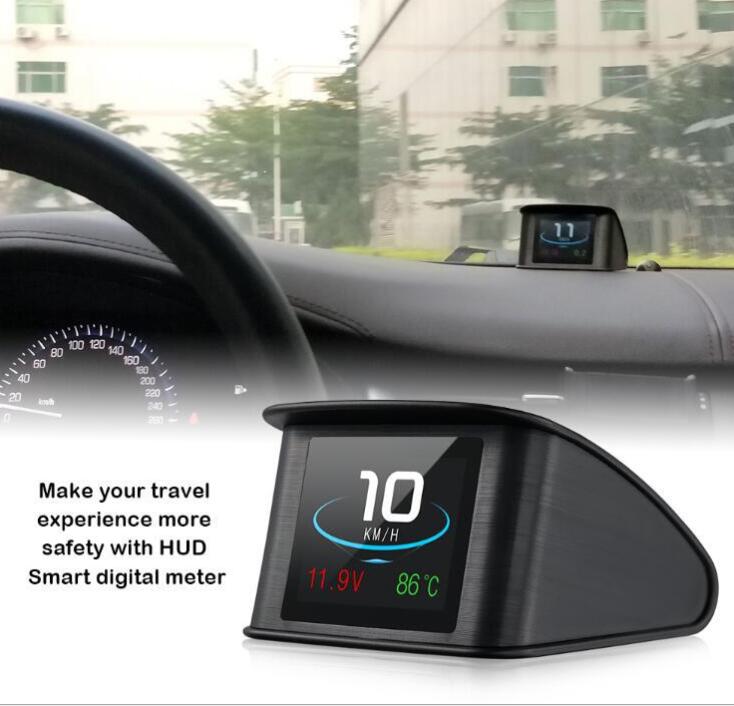

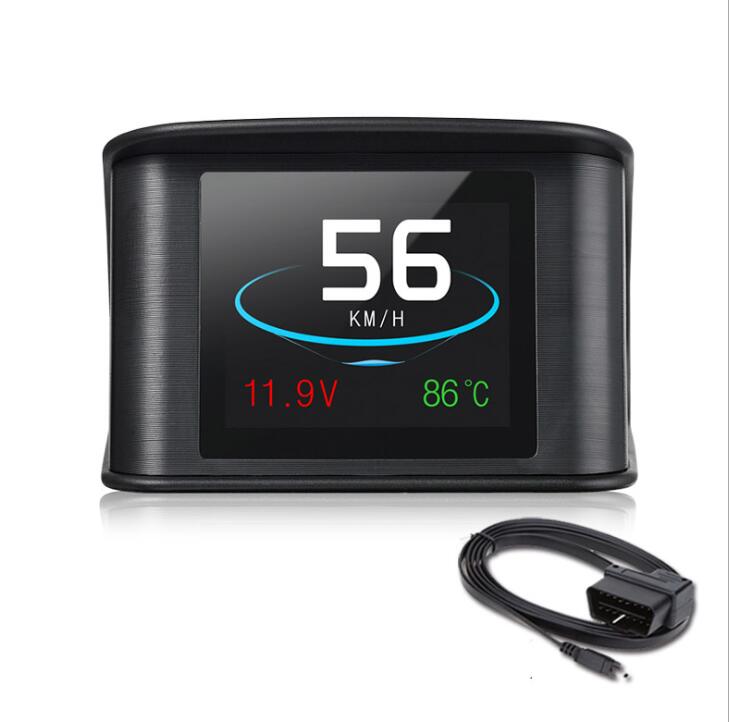

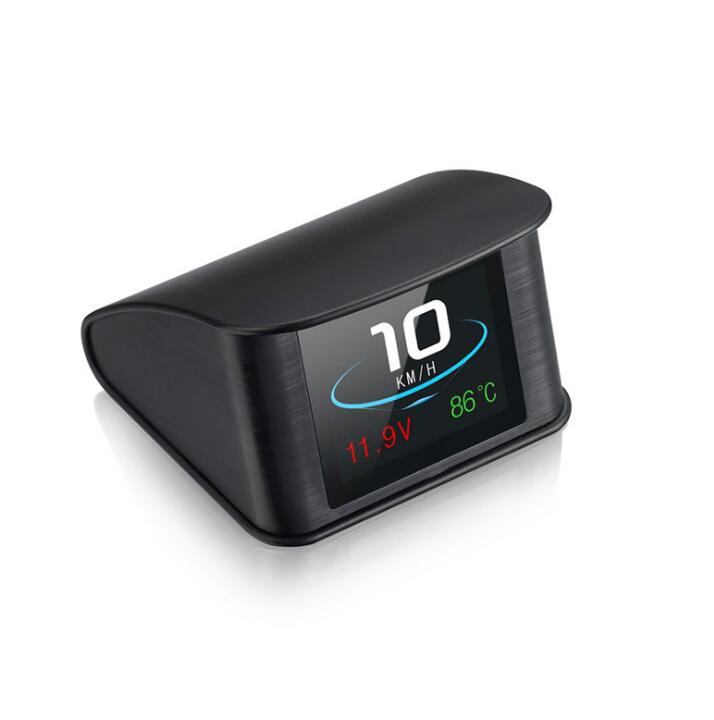

Thank you for buying our OBD smart digital device. The product connects the OBD2 interface of automobile through OBD cable, and displays driving data, such as vehicle speed, engine speed, water temperature, fuel consumption, etc. It keeps the driver's eyes on the road and avoids the danger of reducing the head reading the dashboard. This product will not change any vehicle ECU data.
OBD intelligent digital equipment equipped with a very powerful error code detection function, the device can clearly display the error code information in text form, and can clear the fault information, and display accelerated competition mode, braking performance test mode, read the entire vehicle data flow information and other functions.
Main functions and characteristics:
1. For automobiles with OBD2 and EUOBD ports (automotive automatic diagnostic system), Plug and Play (Plug and Play)
2. TFT LCD Multicolor Intelligent Display
3. The first scan will show the vehicle protocol.
4. Language can be changed

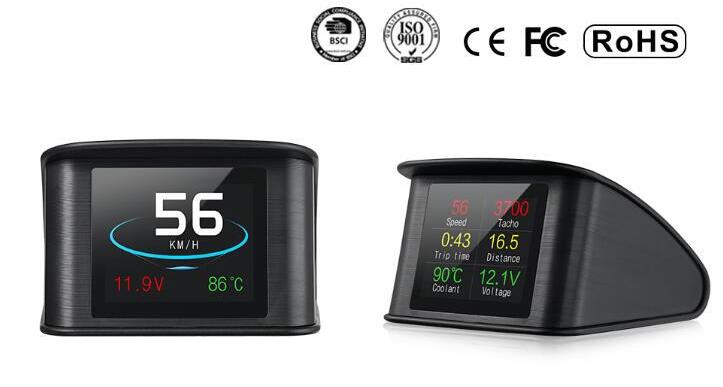

5. Multifunctional display mode or simple function display mode can be switched freely.

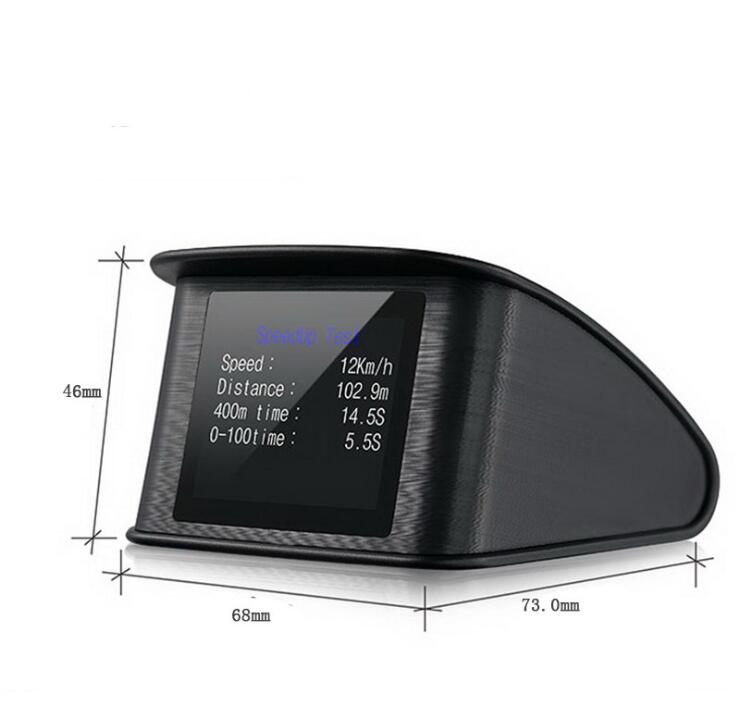

6. Adding new functions: accelerating competition mode, braking performance testing, and reading vehicle data flow information
7. Rich content: Vehicle speed, engine speed, water temperature, voltage, instantaneous fuel consumption, average fuel consumption, driving distance measurement, driving time, low pressure alarm, high water temperature alarm, overspeed alarm, engine fault code alarm, elimination of fault code, free switching between miles and miles.
major function
1. Setting button: You can push left/right, short/long.
2. Optical sensors

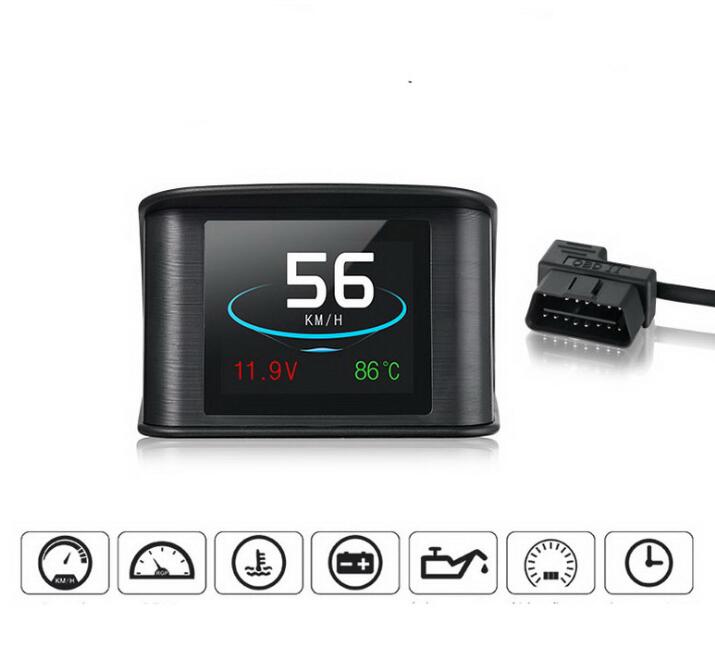

3.OBD interface
Setting button function
1. Short Press: (1) Switch Display Mode (2) Confirm Menu after Entering Menu
2. Push left: (1) Switch left area function (2) Change function settings after entering menu
3. Right-click: (1) Switch the right area function (2) Change the function settings after entering the menu
4. Long Press: Complete the settings after entering the menu, and hold the exit for 5 seconds.
Press left/right switch function:
Here are the functional abbreviations
ECT Engine Coolant Temperature VLT-Voltage FUE-Fuel Consumption
RPM-Speed ODO-odometer per minute
TIM Single Drive Time DIS Single Drive Distance
Factory Settings:
Press the settings button to find the system settings, then press the button to enter the menu, then press the right to switch to the factory settings, and press the long button to keep the exit.
Eliminate the fault code:
When the device successfully scans the program, press the button for a long time to enter the settings menu, then press right to switch to troubleshooting and press short, and then find the function of troubleshooting code, and press long to complete.
Setup mode
Long press to enter setting mode, right press to select menu, short press to confirm. Once the settings are completed, the long press enters and exits.
Setting function
In menu mode, all default values can be changed, left push is reduced, right push is increased.
Language Set: Choose the language you are familiar with
Warning tone: turn on/off buzzer
Speed alarm: default value is 150 (you can change the default value, left push is reduced, right push is increased)
Coolant alarm: The default value is 120 degrees, indicating that when the coolant temperature exceeds 120 degrees, the equipment will give an alarm.
RPM alarm: The default value is 6000 r, indicating that when RPM exceeds 6000 r, the device will give an alarm.
BAT Alarm: The default value is 10.5V, indicating that the device will give an alarm when the battery voltage is below 10.5V.
Speed regulation: According to the dashboard, the default value is 107%.
Velocity offset: When the vehicle is closed but the device speed is not zero, the device speed offset value is adjusted. If the device speed is displayed as 5KM/H, the default value of the device speed offset is changed to 5.
BAT adjustment: If the battery voltage is different from that of the vehicle, it can be adjusted.
Engine Size: The default value is 1.6L. If the fuel consumption of the dashboard varies greatly, please change it to displacement size.
Fuel adjustment: default value is 100%, adjustable
Change the color: Choose your favorite display color
CWT Unit: The default coolant temperature is C, which can also be changed to.
Speed unit: KM by default, can be changed to Mile
Total Distance: The total driving distance can be the same as the dashboard (if the dashboard shows a total distance of 30 000 Km, the user can set the device value to 30 000 KM)
Power-off time: default power-off time is 10 seconds. For automatic start-up and shutdown, please set power-off time to 180-240 seconds.
Sleep Voltage: Turn off by default. If the device can't turn off automatically, adjust the voltage to 13.2V or higher.
Out-of-factory settings: Short press into the factory settings 0.05
